SIEGMUND SYSTEM 22
Durable
Medium/Heavy duty table

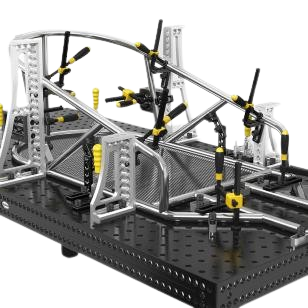

The Siegmund System 22 welding tables are for medium to heavy duty applications. This range helps to bridge the gap between System 16 and System 28. With a large choice of sizes and styles available, you are sure to find a variation to suit your needs.
High resistance against rust, impact, scratches and weld spatter gives the tables very long service life.

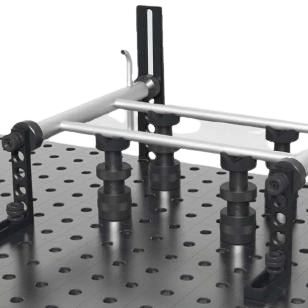

A seemingly endless choice of clamps, bolts, squares, stops, legs and accessories makes the system extremely versatile.
The highly visible grid, equispaced holes and quick release clamps make the system fast and easy to use.
All of the System 22 welding tables work on a 22mm hole diameter (hence the name) and are better suited to heavier industry where System 16 might struggle with the wieght and size of the welded articles. The same accurate and repeatable results are achieved, but with stronger clamps than its smaller System 16 counterpart.
If System 16 cannot carry the weight of your heavier fabrications and System 28 is a little over the top for your needs, then System 22 will be a happy medium for you.
High resistance against rust, impact, scratches and weld spatter gives the tables very long service life.
A seemingly endless choice of clamps, bolts, squares, stops, legs and accessories makes the system extremely versatile.
The highly visible grid, equispaced holes and quick release clamps make the system fast and easy to use.
All of the System 22 welding tables work on a 22mm hole diameter (hence the name) and are better suited to heavier industry where System 16 might struggle with the wieght and size of the welded articles. The same accurate and repeatable results are achieved, but with stronger clamps than its smaller System 16 counterpart.
If System 16 cannot carry the weight of your heavier fabrications and System 28 is a little over the top for your needs, then System 22 will be a happy medium for you.
Product
VIDEO

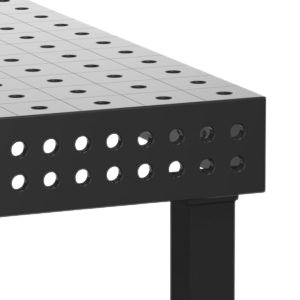

P R O F E S S I O N A L 012345678900123456789001234567890Surface hardness 450- 750 Vickers
E X T R E M E 01234567890 .01234567890Surface hardness 450-850 vickers
Product
HIGHLIGHTS
MATERIAL THICKNESS
18mm
TABLE SIDE DEPTH
150mm
HOLE SPACING
100mm
GRID SPACING
100mm
LOAD CAPACITY
3000kg (spread load)
CORE HARDNESS
from 165 - 220 Vickers
up to 280 - 340 Vickers
up to 280 - 340 Vickers
GET IN TOUCH ENQUIRE ABOUT
This Product Name
For more information about this product, speak to one of our experts by calling the number below.
DOWNLOADS
Technical
INFORMATION
Table sizes
| Size (mm) | Professional 750 | Professional Extreme 8.7 |
| 1000 x 1000 | X | X |
| 1200 x 800 | X | |
| 1200 x 1200 | X | X |
| 1500 x 1000 | X | X |
| 1500 x 1500 | X | X |
| 2000 x 1000 | X | X |
| 2000 x 1200 | X | |
| 2000 x 2000 | X | |
| 2400 x 1200 | X | X |
| 3000 x 1500 | X | X |
| 4000 x 2000 | X |
Frequently Asked
Questions
If you have a question not on our FAQs, please don’t hesitate to get in touch by calling us or filling out the short form below?
Q: What sizes are the system 22 welding tables available in?
A: Available in sizes from 1000 x 1000mm to 4000 x 2000mm
Q: what material is the system 22 made from
A: both variations of the system 22 welding table, basic, professional 750 and extreme 8.7 come in a wide range of materials to suit even the most extreme conditions!
